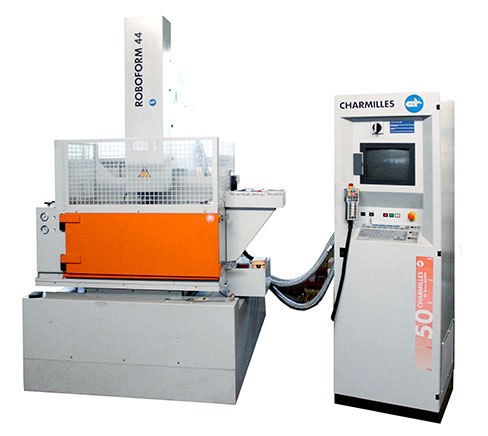

Die Sinking EDM machine
Manufacturer: Charmilles / Switzerland | Type: Roboform 44
| Main specifications: | Die Sinking EDM machine |
|---|---|
| Travel X, Y, Z | X 500 mm, Y 350 mm, Z 350 mm |
| Tank | X 1090 mm, Y 700 mm, Z 400 mm |
| Generator | Isopulse 64A |
| C-axis Rotary Spindle, max 80 rpm | |
| System 3R Macro/junior - combination chuck | |
| 6 pcs pallet changer for electrodes, max Ø 65 x 400 |
